Observation angle | 45°tilted |
Magnification of eyepiece | 10X |
Interpupillary distance | 50mm-80mm |
Diopter | ±5D |
Focal length of objective | F=300mm |
Zoom Magnification changer | 0.4X-2.75X |
Total Magnification | 2.4X-16X |
Linear field | 80mm-13mm |
Fine focusing distance | 20mm |
Balance arm | Counterweight adjustable and can be locked |
Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx |
Filter | Build-in green & blue filters |
Floor stand | Short column fitted on the five-star base with casters

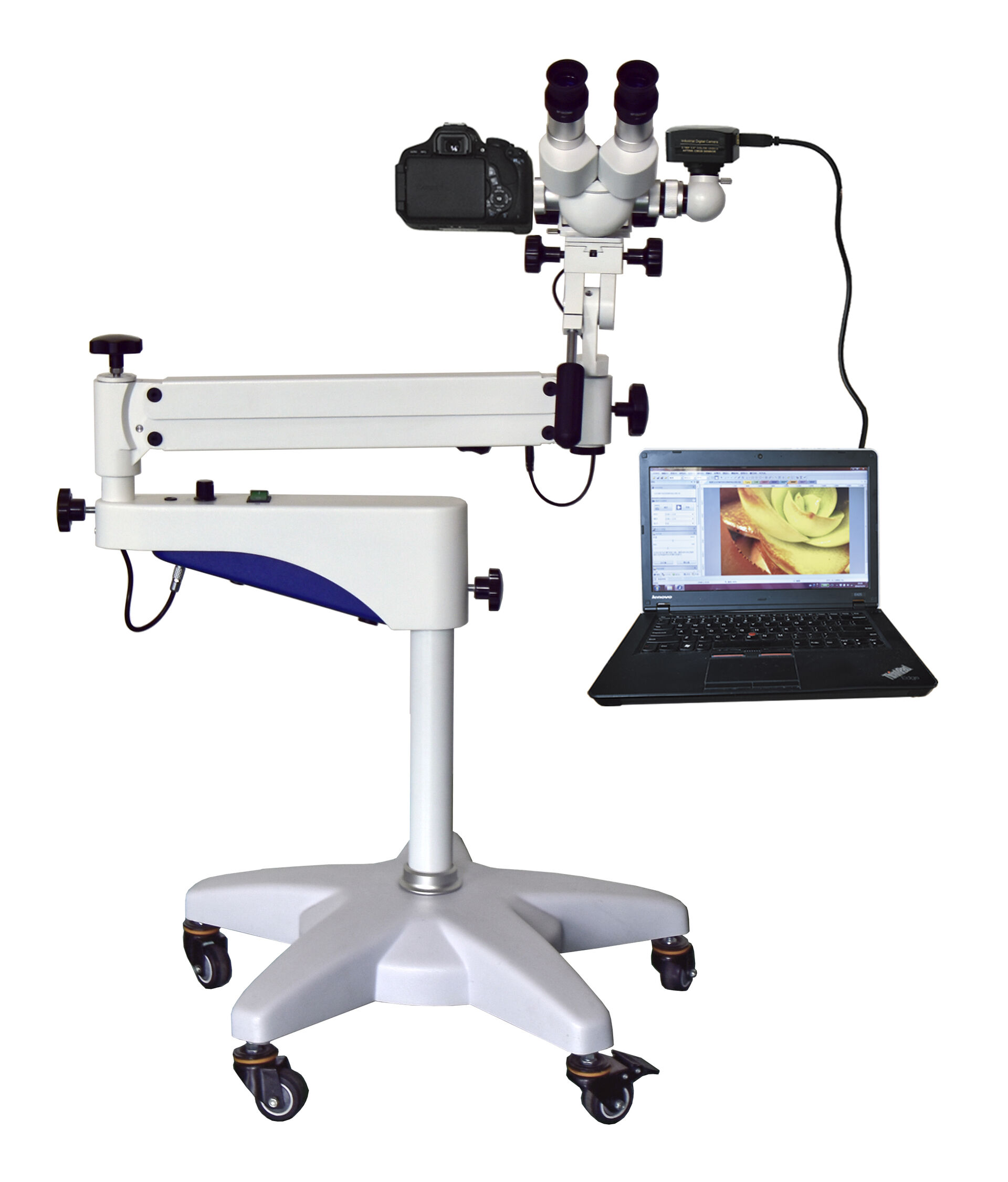

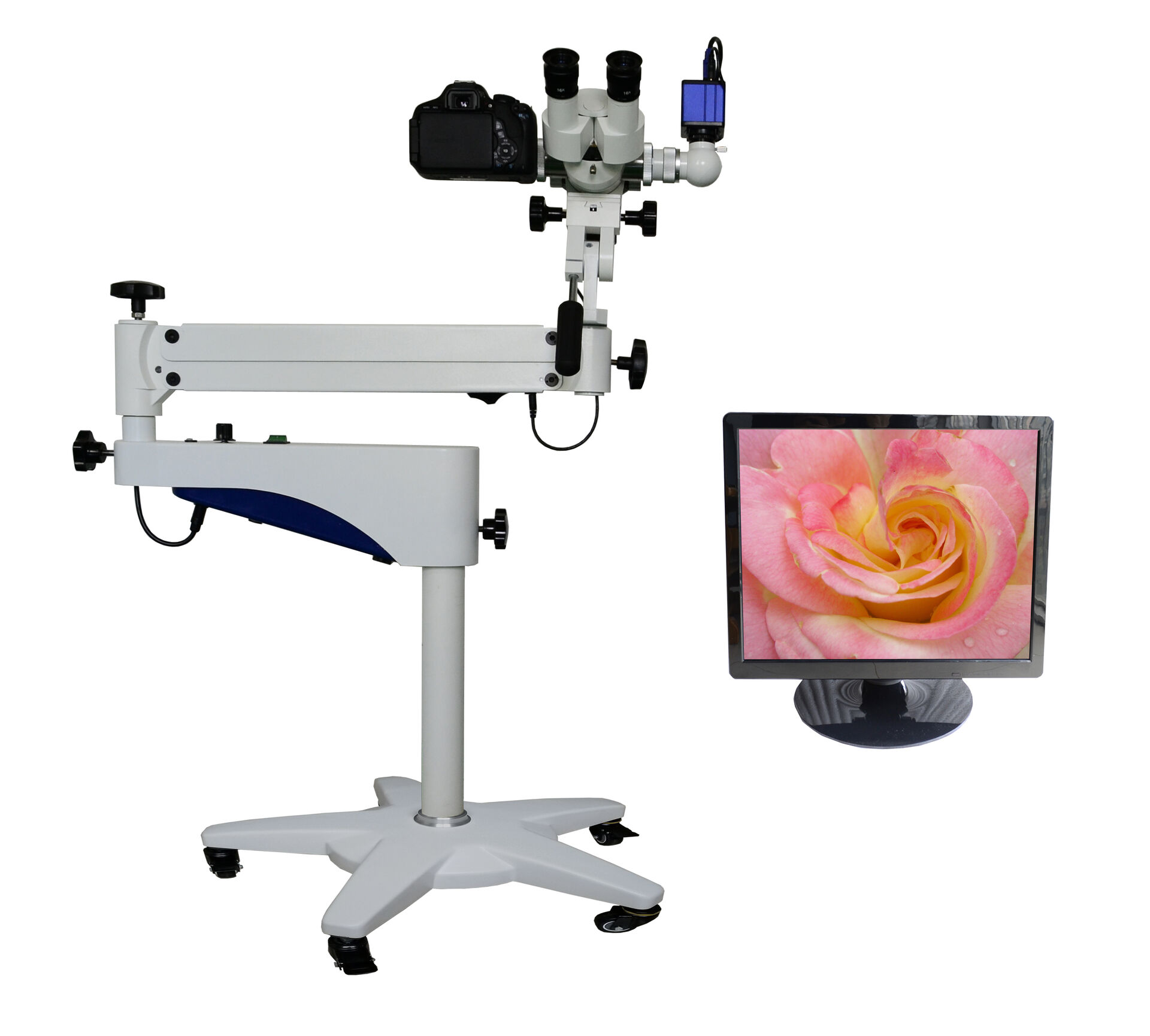

With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable
|
Power supply | AC100V-AC240V |
Optional accessories | Demonstrator, Camera, SLR camera adapter, Monitor, Objective (F=230mm & F=280mm), Monitor mount. |
